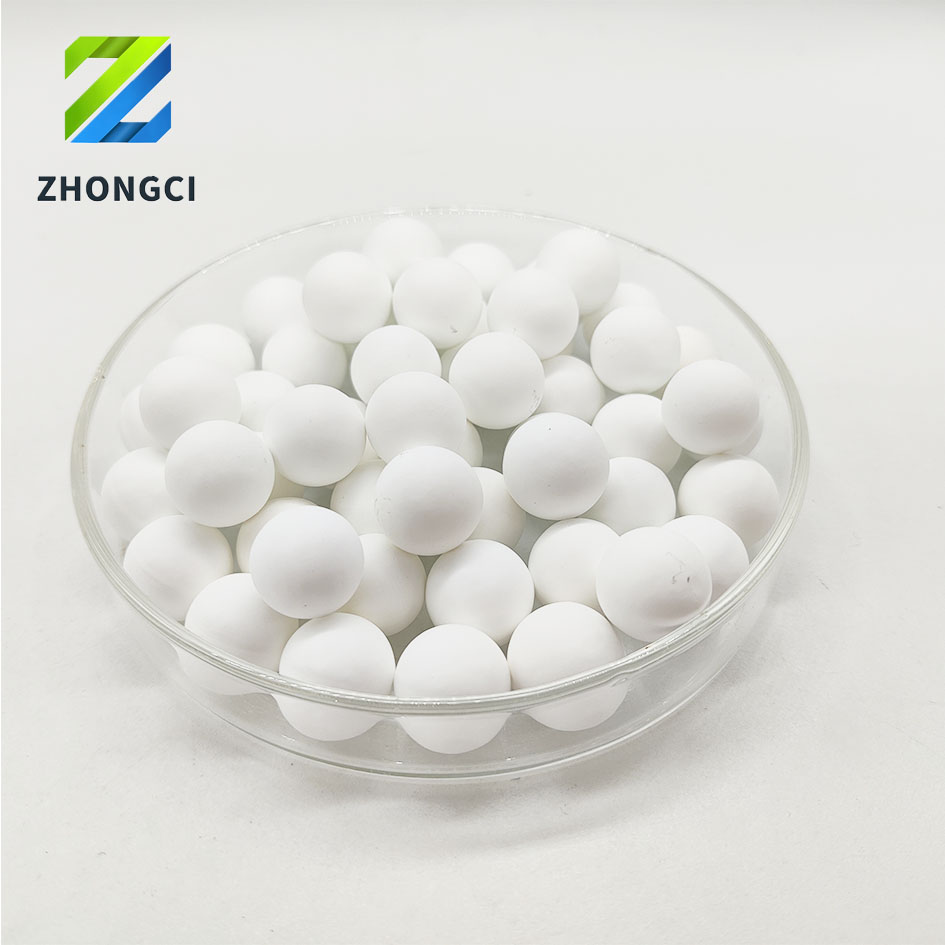

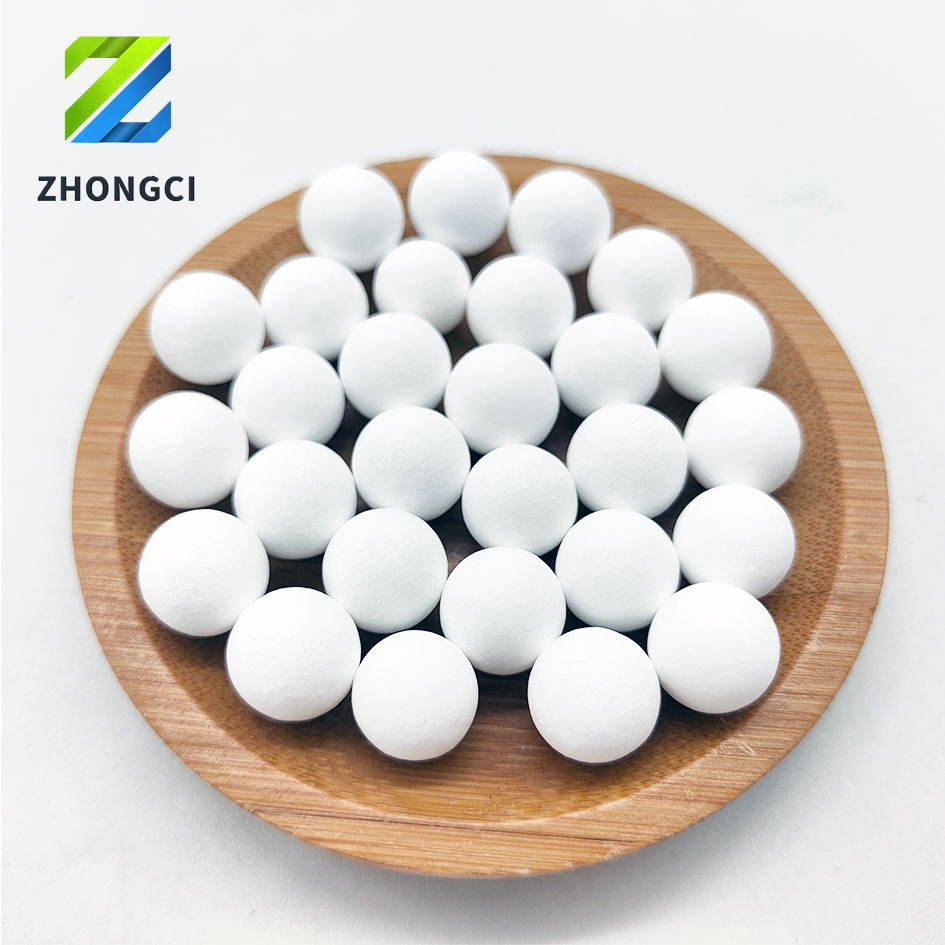

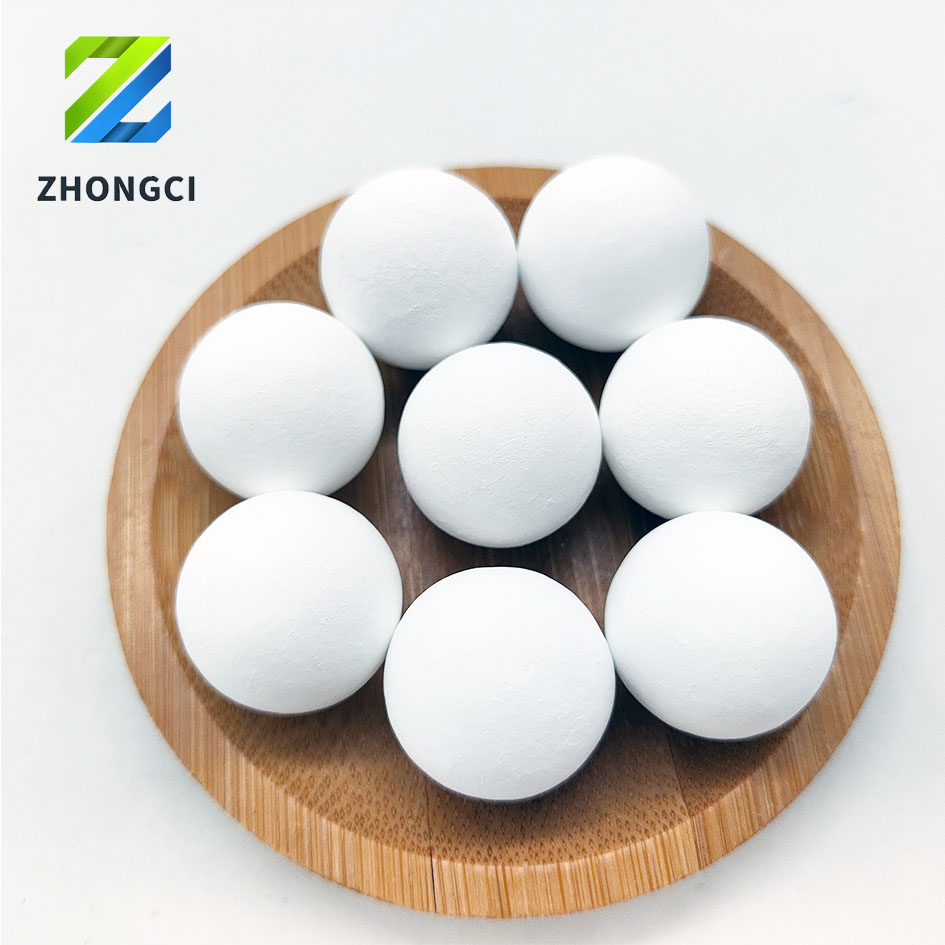

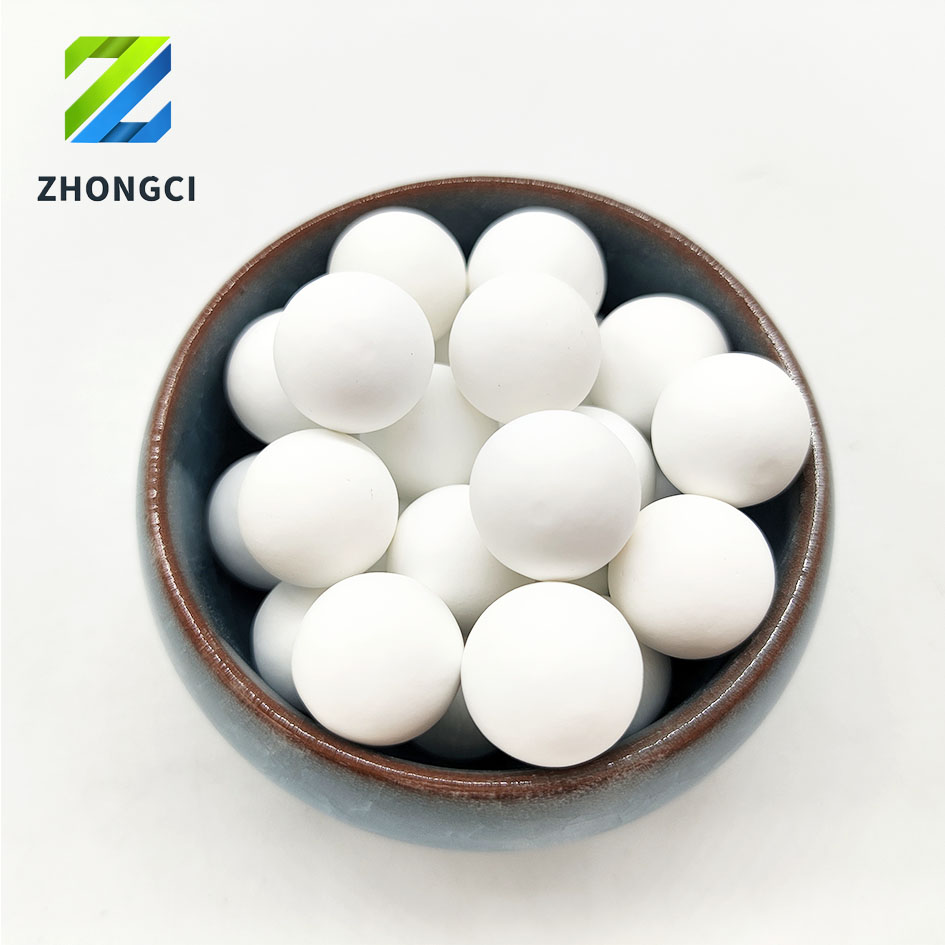

99% Al2O3 Inert Alumina Ceramic Ball
99% high alumina ceramic ball (catalyst carrier medium) is a stable material with high aluminum content in international standards, made of alumina powder with low silicon content. It is characterized by its high purity and high strength. It can be used in high-precision equipment industry.
It has extremely high temperature resistance, can withstand temperature changes and chemical processing, and ensures absolute safety in use. It is mostly used in the chemical industry to avoid reaction towers. The silica in the leaching process coats downstream equipment, fouling or poisoning the catalyst support.
99% High Alumina Ceramic Ball
(Catalyst Support Media) is made from alumina powder of low silicon content. The high purity and high strength make them extremely high temperature resistance, is used to avoid the leaching reaction tower of silica cover downstream equipment or dirt or poisoned catalyst carrier. This makes them all ideal choice for support of all types of catalyst. It’s widely used in petroleum, chemical, fertilizer, gas and environmental protection industries, as a catalyst in the reactor to cover support material and tower packing.
It has a high temperature and high pressure resistance, bibulous rate is low,
the characteristics of the chemical performance is stable. Can withstand the erosion of acid, alkali and other organic solvents,
and can endure in the production process of temperature changes. Its main function is to increase gas or liquid distribution points, support and protection intensity is not high activity of the catalyst.
Chemical Composition
| Item | Al2O3 | Fe2O3 | MgO | SiO2 | Na2O | TiO2 |
| Content | >99% | <0.1% | <0.5% | <0.2% | <0.05% | <0.05% |
| Leach able Fe2O3 is less than 0.1%. | ||||||
Physical Properties
| Item | Value |
| Water absorption (%) | <1 |
| Bulk density (g/cm3) | 1.9-2.2 |
| Specific gravity (g/cm3) | >3.6 |
| Operation temp. (max) (℃) | 1650 |
| Apparent porosity (%) | <1 |
| Moh’s hardness (scale) | >9 |
| Acid resistance (%) | >99.6 |
| Alkali resistance (%) | >85 |
Crush Strength
| Size | Crush strength | |
| Kg/particle | KN/particle | |
| 1/8″ (3mm) | >203 | >2 |
| 1/4″ (6mm) | >459 | >4.6 |
| 1/2″ (13mm) | >877 | >8.7 |
| 3/4″ (19mm) | >1220 | >12 |
| 1″ (25mm) | >1630 | >16 |
| 1-1/2″ (38mm) | >2340 | >23 |
| 2″ (50mm) | >3460 | >34 |
| Other size can be customize. | ||
Size And Tolerance
| Size and tolerance (mm) | ||||
| Size (mm) | 3/6/9 | 9/13 | 19/25/38 | 50 |
| Tolerance | ± 1.0 | ± 1.5 | ± 2 | ± 2.5 |
