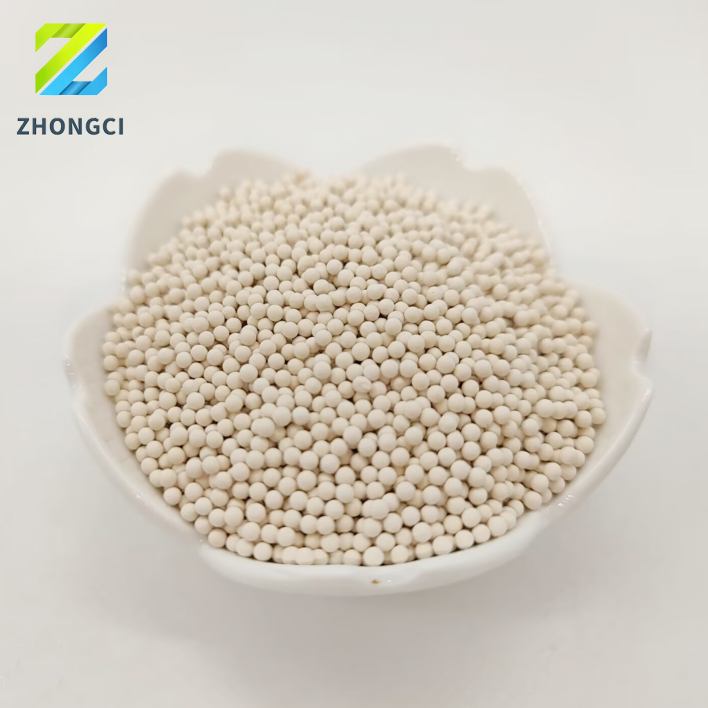

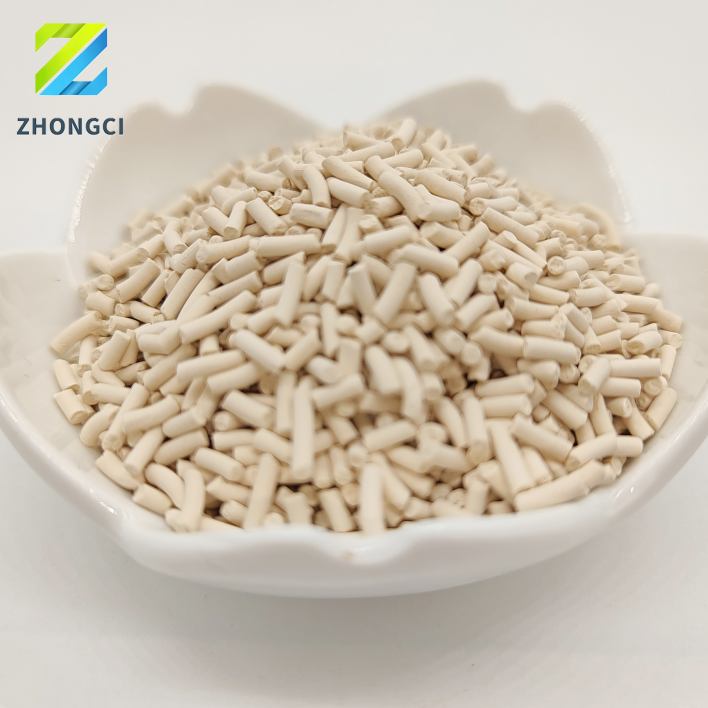

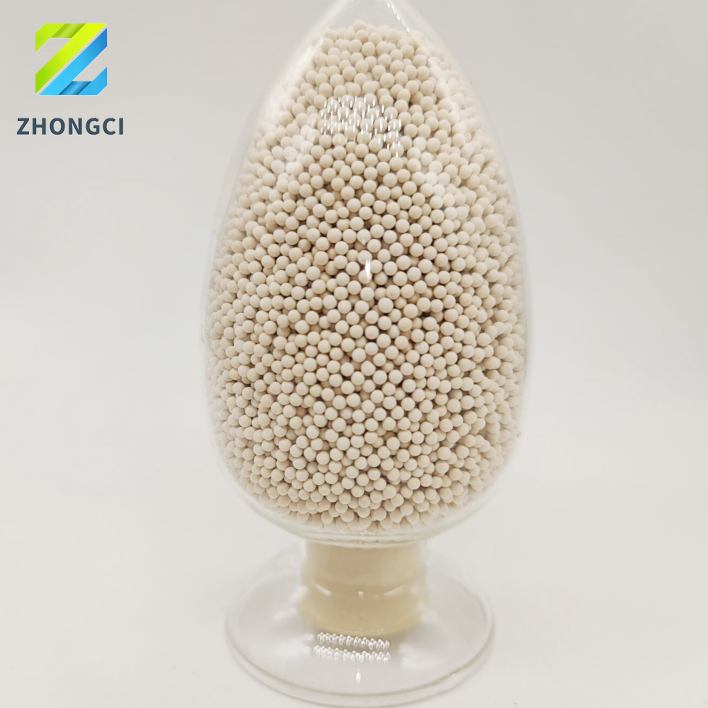

3A EDG Molecular Sieve Desiccant

An Overview of 3A EDG Molecular Sieve Desiccant

Molecular sieves are crystalline aluminosilicate materials with uniform pore structures, widely used for selective adsorption of molecules based on size and polarity. Among them, 3A EDG (Ethylene Glycol) molecular sieve desiccant is a specialized type designed for dehydration in ethylene glycol (EG) production and related applications. Its unique properties make it ideal for removing water from EG systems while avoiding adsorption of the target molecule itself.

Key Characteristics of 3A EDG Molecular Sieve Desiccant

• Pore Size: The “3A” designation refers to an average pore diameter of approximately 3 angstroms (Å). This size excludes larger molecules like EG (kinetic diameter ~4.5 Å) while allowing water (kinetic diameter ~2.8 Å) to be adsorbed, ensuring high selectivity.
• Chemical Composition: Composed of sodium potassium aluminosilicate, with a framework structure that prioritizes water adsorption through hydrogen bonding and polar interactions.
• High Adsorption Capacity: Exhibits strong affinity for water even at low humidity, with typical capacities ranging from 20-25% by weight under standard conditions.
• Thermal Stability: Maintains adsorption efficiency at elevated temperatures (up to 300°C), making it suitable for high-temperature EG dehydration processes.

Applications in Ethylene Glycol Production

3A EDG molecular sieves play a critical role in EG synthesis, where water must be rigorously removed to prevent catalyst poisoning and ensure product purity:

1. Dehydration of EG Streams: In the hydration of ethylene oxide to EG, excess water is generated. 3A EDG sieves selectively adsorb water, allowing EG to pass through unadsorbed.
2. Purification of Recycled EG: In industrial recycling processes, the sieve removes water and trace impurities from used EG, enabling reuse.
3. Drying of Process Gases: Prevents moisture contamination in reactant gases (e.g., ethylene oxide) by adsorbing water vapor before reaction.

Advantages Over Conventional Desiccants

Compared to alternatives like silica gel or activated alumina, 3A EDG molecular sieves offer distinct benefits:

• Selectivity: Avoids adsorption of EG, minimizing product loss and ensuring process efficiency.
• Regenerability: Can be thermally regenerated (typically at 200-300°C) for multiple cycles, reducing operational costs.
• Compact Design: Higher adsorption density allows for smaller equipment footprint in industrial setups.

Operational Considerations

• Regeneration Conditions: Requires controlled heating under inert gas (e.g., nitrogen) to remove adsorbed water without damaging the sieve structure.
• Flow Rate Optimization: Contact time between the EG stream and sieve bed must be sufficient to achieve target moisture levels (<50 ppm).
• Impurity Tolerance: Sensitive to oil or heavy organic contaminants, necessitating pre-filtration of feed streams.

Conclusion

3A EDG molecular sieve desiccant is an indispensable tool in ethylene glycol production, leveraging its precise pore size and high selectivity to enable efficient water removal. Its technical advantages, including regenerability and thermal stability, make it a cost-effective solution for industrial dehydration processes. As chemical manufacturing continues to demand higher purity standards. The role of specialized molecular sieves like 3A EDG will remain pivotal.
